Description

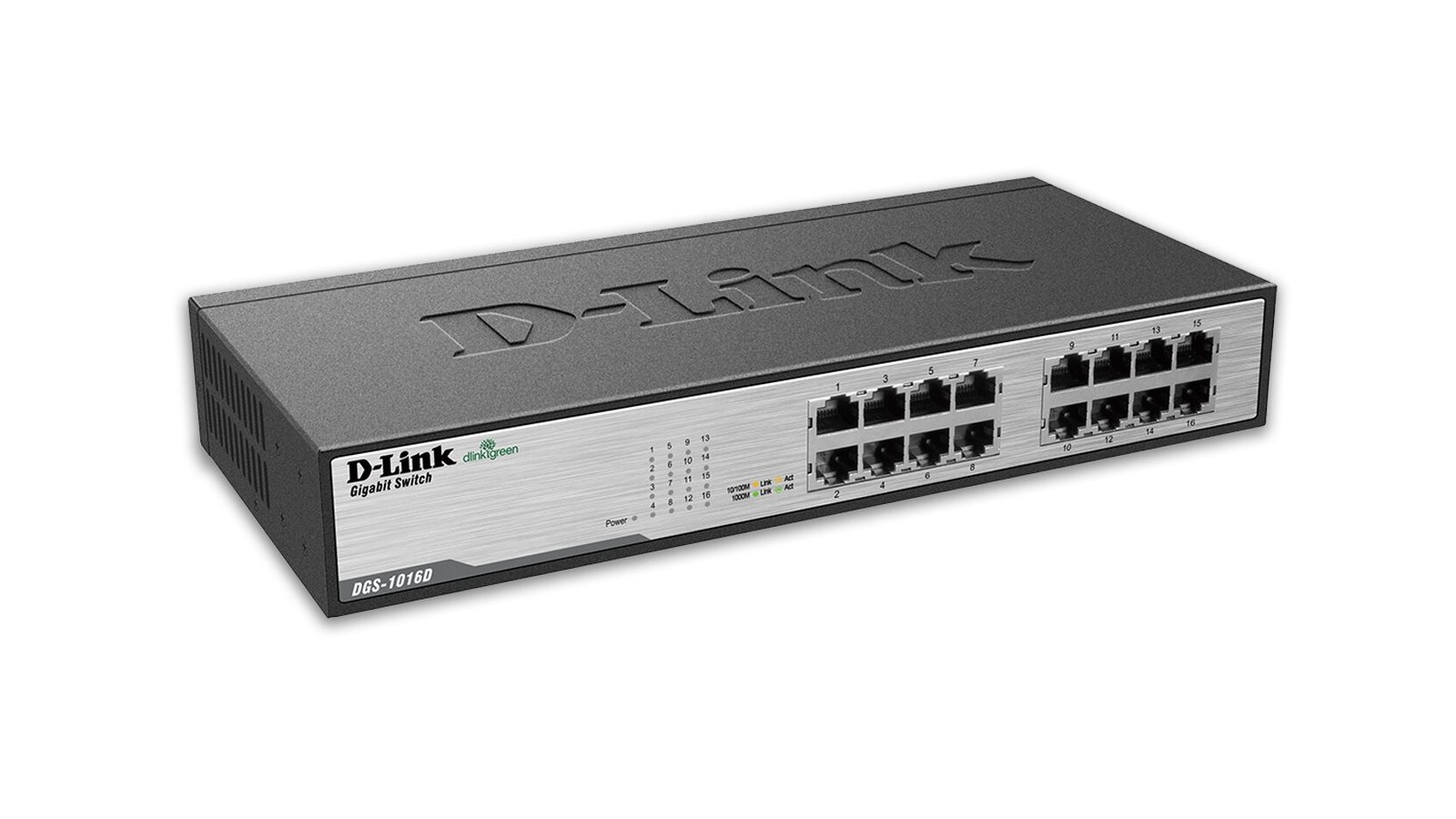

D-Link DGS-1016D 16-Port Gigabit Desktop Switch

The D-Link DGS-1016D is a high-performance unmanaged Gigabit switch designed for small to medium businesses, workgroups, and growing networks. With 16 auto-sensing Gigabit Ethernet ports, it delivers fast and reliable connectivity for bandwidth-hungry applications like video streaming, VoIP, large file transfers, and network backups.

Key Features

• 16 Gigabit Ethernet Ports

  • Supports 10/100/1000 Mbps auto-sensing.

  • Auto MDI/MDI-X for plug-and-play connectivity without the need for crossover cables.

• High Switching Capacity

  • 32 Gbps switching fabric ensures smooth, non-blocking data transfer between ports.

  • Wire-speed forwarding for maximum throughput.

• Reliable Traffic Management

  • IEEE 802.3x Flow Control for full-duplex and backpressure for half-duplex to minimize packet loss.

  • 802.1p QoS (Quality of Service) with 4 priority queues for smoother voice, video, and critical data.

• Green Technology

  • Energy-Efficient Ethernet (EEE, 802.3az) reduces power consumption during low data activity.

  • Ports automatically power down when not in use or when shorter cables are detected.

• Sturdy & Quiet Design

  • Metal chassis for durability.

  • Fanless operation for silent performance, ideal for offices or noise-sensitive environments.

  • Can be used as a desktop unit or mounted in a standard 19-inch rack (1U height).

• Simple Deployment

  • Unmanaged, plug-and-play setup—no configuration required.

Technical Specifications

• Ports: 16 × 10/100/1000 Mbps RJ-45

• Switching Capacity: 32 Gbps

• Forwarding Rate: 23.8 Mpps

• MAC Address Table: 8K entries

• Packet Buffer Memory: 512 KB

• Energy Efficiency: Supports IEEE 802.3az EEE

• Dimensions: 280 × 125 × 44 mm

• Weight: ~1.02 kg

• Power Consumption: Approx. 10 W max

• Operating Temperature: 0–40 °C

• Form Factor: Desktop or rack-mountable (1U)

• Cooling: Fanless, silent design

Advantages

• High-speed Gigabit performance across all 16 ports

• Energy-efficient with smart power saving

• Sturdy metal housing and silent operation

• QoS for prioritizing critical traffic

• Lifetime warranty (varies by region)

Limitations

• Unmanaged – no VLANs, monitoring, or advanced configuration

• No PoE support – cannot power IP phones, cameras, or APs directly

• Fixed 16 ports – larger networks may require stacking or additional switches

✅ In Summary: The D-Link DGS-1016D is a simple, energy-efficient, and reliable 16-port Gigabit switch that’s perfect for small offices, workgroups, or expanding home networks. It delivers strong performance, quiet operation, and effortless setup for users who don’t need advanced managed switch features.
